Tailor-made maximum benefit solar field construction plan
Products and Applications
All-round solutions, professional engineering team, one-stop service

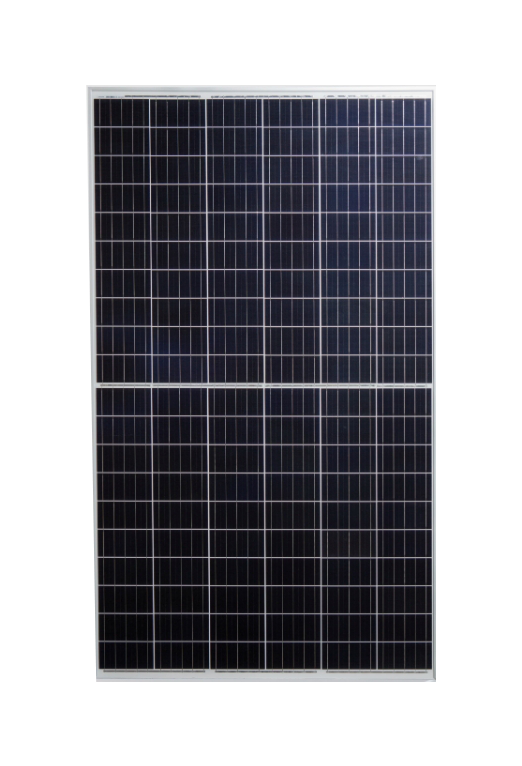

High-efficiency solar modules
- Specially strengthened high-transparency solar photovoltaic glass uses Taiwan-made ultra-high-efficiency solar cells to obtain Taiwan VPC high-efficiency module certification Own laboratory, using proven materials Junction box, EVA, back-sheet solar cells in series The stable infrared welding method has a small power error range, positive tolerance +0~3% reliability performance test, and the product has good weather resistance. Snow Load can reach 5400PA / Wind Load can reach 3600PA. Use materials that are 3 times stricter than IEC verification
Input data (DC)
| Maximum power wattage (w) | Number of Cells (pcs) | Dimensions (W×H×D) (mm) |
|---|---|---|
| 320~335 | 60 | 1665X1002X40 |
| 390~400 | 72 | 1979X1002X40 |
| 370~385 | 120 | 1755X1038X40 |
| 440~460 | 144 | 2090X1038X40 |
| 360~380 | 120 | 1755X1038X40 |
| 425~455 | 144 | 2090X1038X40 |
Application Scenario
Solar house, solar street light, landscape light, RV car power supply, outdoor power generation equipment, mountain rescue equipment, space technology application, ship battery charging, power generation in desert area, solar car, solar plane, advertising billboard, solar power plant
Erection method
roof cladding
Use solar materials to make bendable semi-flexible sheets and install them on the roof.
roof plus
Modular solar panels, which are spliced and installed on the roof, are the mainstream in the Taiwan market and are also the main products of our company. The other module is smaller and similar to tiles. It is beautiful to install and can be integrated with buildings, and it has great flexibility in use.
exterior wall
The design is inlaid on the exterior wall, and it can also be used as a rain shield and sunshade in accordance with the architectural design, and has a decorative function.
glass window
Translucent modules can replace window skylights or glass curtains, double as rain and sun visors, and have decorative functions.
certified product

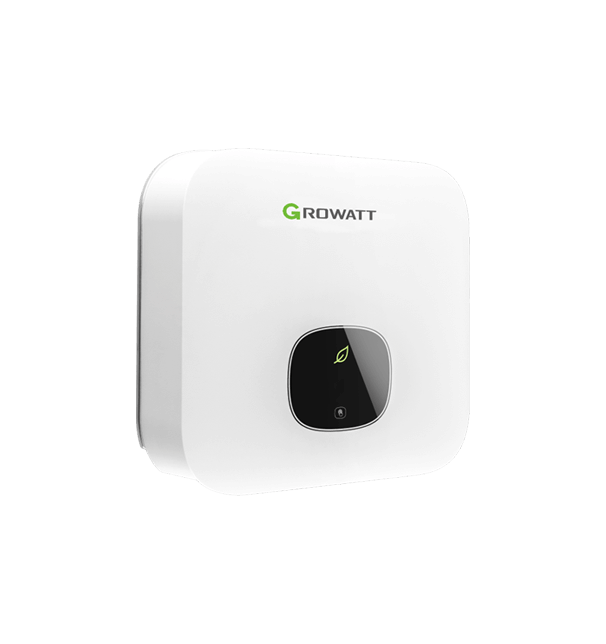

solar inverter
The maximum conversion efficiency is 98.4%, dual-channel MPPT, OLED display and touch buttons.
Technical Parameters
Input data (DC)
| Maximum DC input power (W) | 4200W/7000W/8100W |
|---|---|
| Maximum DC input voltage (V) | 550V |
| Starting voltage | 100V |
| Rated input voltage | 360V |
| MPPT voltage range | 70-550 |
| Number of MPPTs | 2 |
| Maximum number of input strings | 1 |
| Maximum input current of each MPPT | 12.5A |
| Maximum short-circuit current of each MPPT | 16A |
input data (AC)
| Rated AC output power | 3000W | 5000W | 6000W |
|---|---|---|---|
| Maximum AC output power | 3300VA | 5500VA | 6600VA |
| Rated output voltage | 220V | ||
| Rated output frequency | 60Hz | ||
| Maximum output current | 14.3A | 23.9A | 28.7A |
| Grid connection type | unidirectional |
Application Scenario
Small roof, adaptable to inconsistent orientation of components, single-phase 220V voltage connected to the grid
easy to use
OLED display, touch button design, easy to operate Using polymer aviation materials, the product weight is reduced by 45%
efficient power generation
The maximum efficiency is 98.4%, and the power generation is better. DC 1.4 times over-distribution, AC 1.1 times overload DC wide voltage range, early start and late stop, longer power generation time
Safe and reliable
IP65 protection level, DC secondary lightning protection inductor heat dissipation and main radiator separate design, natural cooling
